GF Architectural Install · Flagship Install · Passive

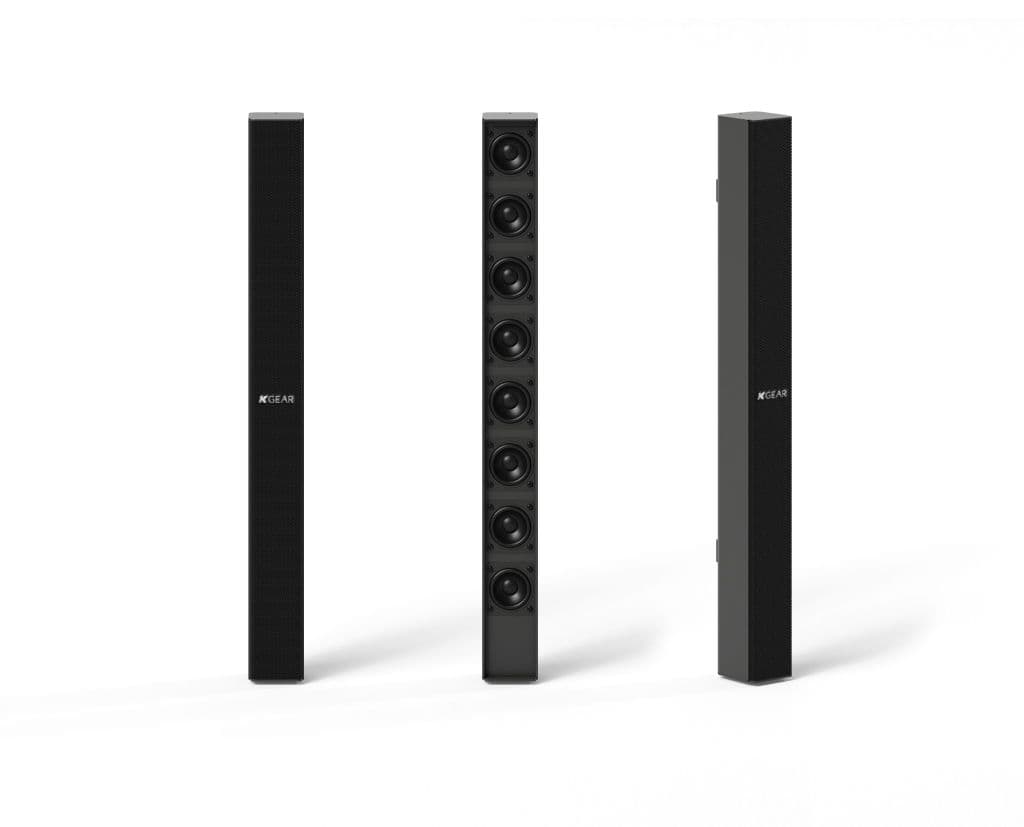

GF82 I
GF82 I compact 8×2 line array: 200W, PAT, controlled dispersion.
Design Story
Positioned as the medium-size line array element in the GF Family, the GF82 I is upgraded with a stainless-steel grille and compact column format for tougher, more discreet outdoor-ready installs, with IP56 capability when used with the appropriate accessory. Inside its recycled ABS enclosure, eight closely spaced 2" ferrite woofers and K-array™ PAT deliver precise directivity and narrow vertical coverage (25° V / 90° H) for high intelligibility in speech and detailed music reproduction. Selectable 16Ω/64Ω impedance simplifies system design, and pairing with KGEAR matched subwoofers extends low-end performance for full-range impact.

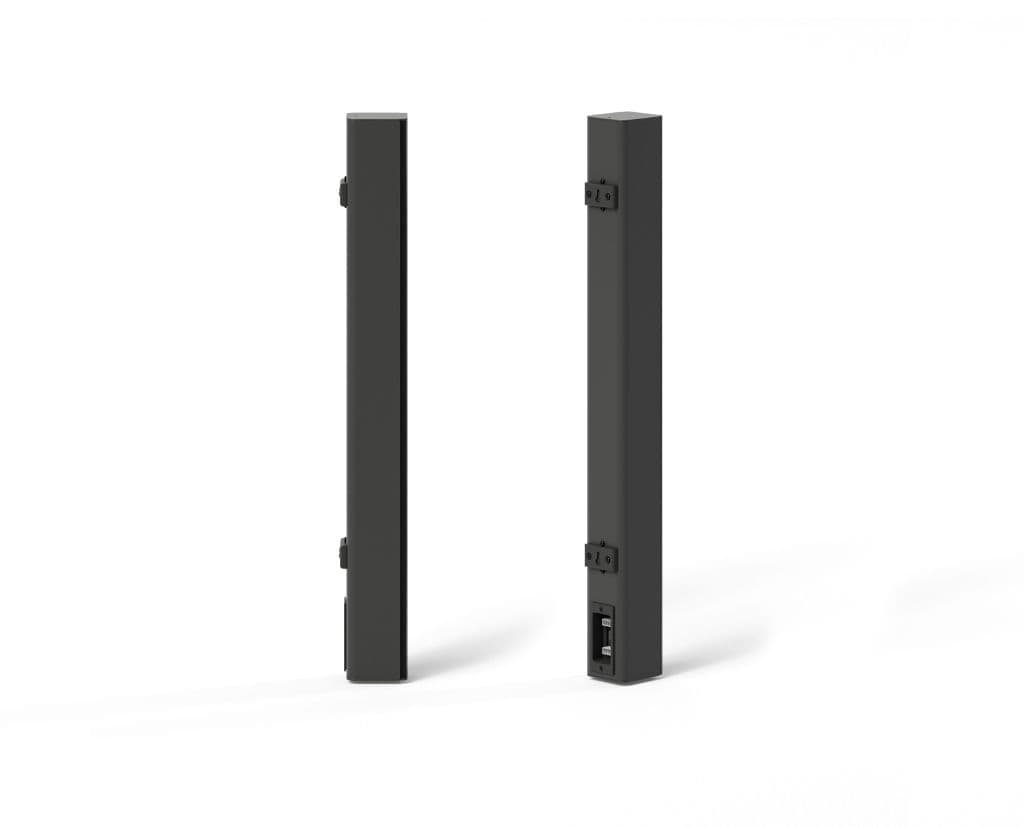

Low Impedance
This configuration allows the speakers to be connected directly to an amplifier, offering maximum control over the sound quality. (GF42 and GF82)

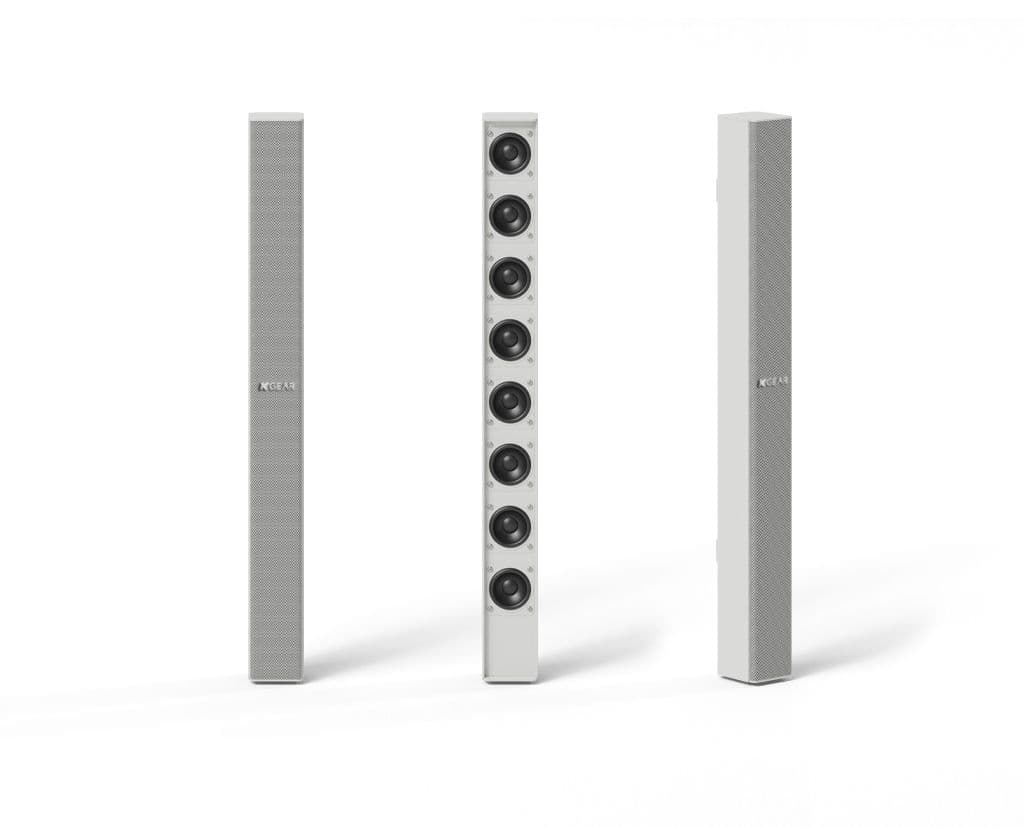

High Voltage with Built-in Transformer
This configuration allows the speakers to be used in a 70/100V distributed sound system, where multiple speakers can be connected to a single amplifier. (GF42T, GF82T, GF162T)

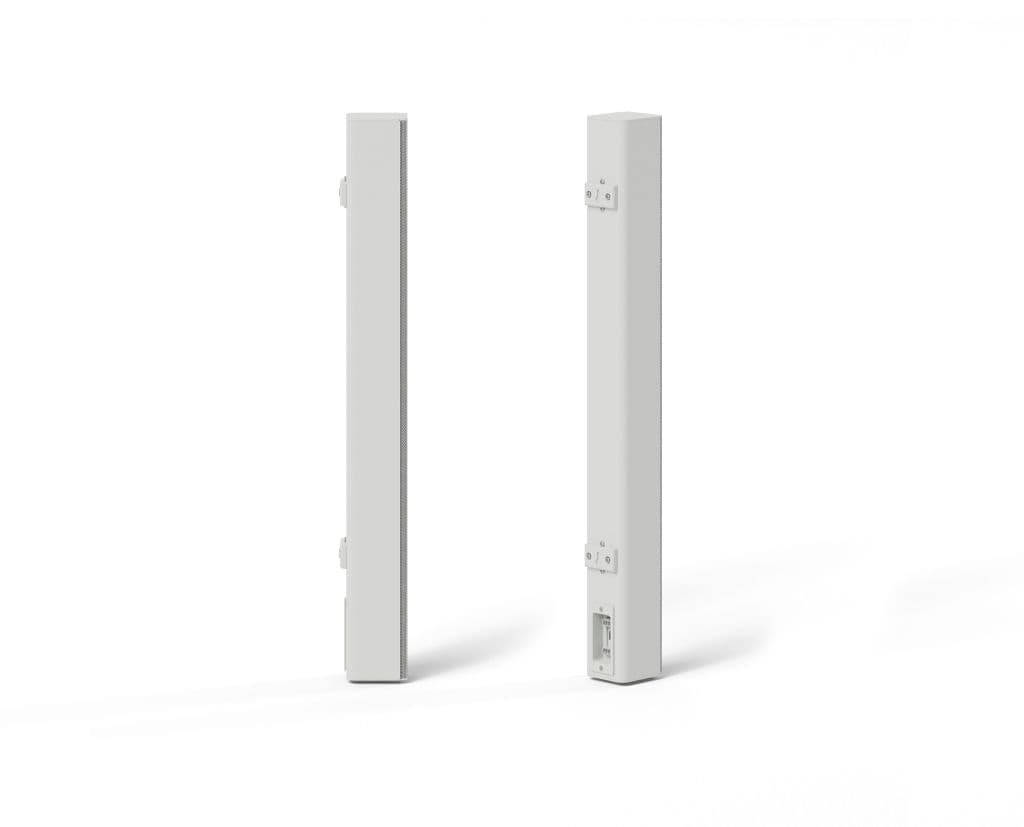

Active Versions
These speakers have built-in amplifiers, making them a convenient option for installations where a separate amplifier is not available or where space is limited. (GF22A, GF42A, GF82A)
